RS-001 Spooling Unit Rental: 60,000 lb, Strongback and Brake
RS-001 is a skid-mounted, Isuzu diesel reel stand rated 60,000 lb, with a strongback frame and a braking system. It takes reels up to 110 in diameter x 87 in wide on a 4 in shaft and is built to spool wire rope on or off crane and winch drums for re-reeving and rope changeouts, plus derrick barge, marine and offshore winch work.
Handles spools up to 110 in diameter x 87 in wide.
Capacity: 60,000 lb | Unit size: 134 x 80 x 89 in
Back tension: up to 3,000 lb | Wire rope: up to 2-3/4 in
Strongback frame: adds rigidity, so the unit stays solid under big reels.
Braking system: controls the reel while spooling.
Rent the RS-001 for your next rope changeout.
RS-001 Spooling Unit Specifications
| Specification | RS-001 |
|---|---|
| Weight capacity | 60,000 lb |
| Shaft | 4 in |
| Frame | Strongback frame |
| Braking system | Yes |
| Maximum spool size | 110 in diameter x 87 in wide |
| Engine | Isuzu diesel |
| Pump | Coupled to a 30 gallon pump |
| Engine kill | Yes |
| Directional controls | Yes |
| Controls | Operated at the power unit |
| Unit size | 134 in L x 80 in W x 89 in H |
| Estimated weight | About 9,500 lb |
| Offloading | Four-part sling supplied |
| Back tension | Up to 3,000 lb (never more than the reel is rated for) |
| Wire rope diameter | Up to 2-3/4 in diameter, depending on length |
Strongback Frame and Braking System
RS-001 is the unit to pick when you want braking on the reel along with a strongback frame. The RS-001 and RS-005 both have a strongback frame, and the braking system is on the RS-001. The strongback keeps the stand solid under big reels, and the braking system helps control the reel as rope pays off toward the crane or winch drum or spools back onto the reel. Units can ship on DNV-certified offshore flat racks for offshore and marine jobs.
Compare Spooling Units by Model and Size
Match the unit to your reel: the reel must fit the maximum spool size and the loaded reel weight must stay within the unit capacity (70,000 lb for the RS-005, 60,000 lb for the RS-002 and RS-001).
| Model | Capacity | Max spool size | Shaft | Engine | Back tension | Wire rope | Unit size (L x W x H) and weight |
|---|---|---|---|---|---|---|---|
| RS-005 | 70,000 lb | 140 in dia x 95 in wide | 4 in and 6 in (both included) | Detroit diesel | Up to 3,000 lb | Up to 2-3/4 in | 209 x 122 x 89 in; about 13,500 lb |
| RS-002 | 60,000 lb | 120 in dia x 92 in wide | 4-1/2 in | Kubota diesel | Up to 3,000 lb | Up to 2-3/4 in | 158 x 90 x 89 in; about 9,500 lb |
| RS-001 | 60,000 lb | 110 in dia x 87 in wide | 4 in | Isuzu diesel | Up to 3,000 lb | Up to 2-3/4 in | 134 x 80 x 89 in; about 9,500 lb |
Back tension is never more than the reel is rated for, and maximum wire rope diameter depends on rope length. The RS-001 and RS-005 both have a strongback frame, and the RS-001 adds a braking system. All RS units have directional controls and an engine kill, with controls at the power unit, and come with a four-part sling for offloading. Shafts from 3 in to 6 in are available to fit your reel. Rentals are by the day, with operator options available.
Not sure which unit fits your reel? Call or email us today and we'll help you match the right spooling unit to your project.
Applications
Crane re-reeving and hoist rope changeouts
When a large crane needs new hoist or boom rope, the spooling unit holds the reel and turns it. Spool the old rope off the winch drum onto an empty reel, then pay the new rope off its reel onto the drum during re-reeving. Directional controls let you spool on or off.
Derrick barges and marine winches
Derrick barge and marine operators use our units and spooling crews to change out and respool winch rope.
Offshore and ocean tugs
Our spooling work extends offshore, including respooling the winch on an ocean-going tug.
Call or email today and we can assist with which unit fits your project.
Serving the Gulf Coast
Wet Tech mobilizes spooling units from our facility in Maurice, Louisiana across the Gulf Coast: Texas, Louisiana, Mississippi, Alabama, Florida and Georgia. Call for availability and mobilization to your jobsite.

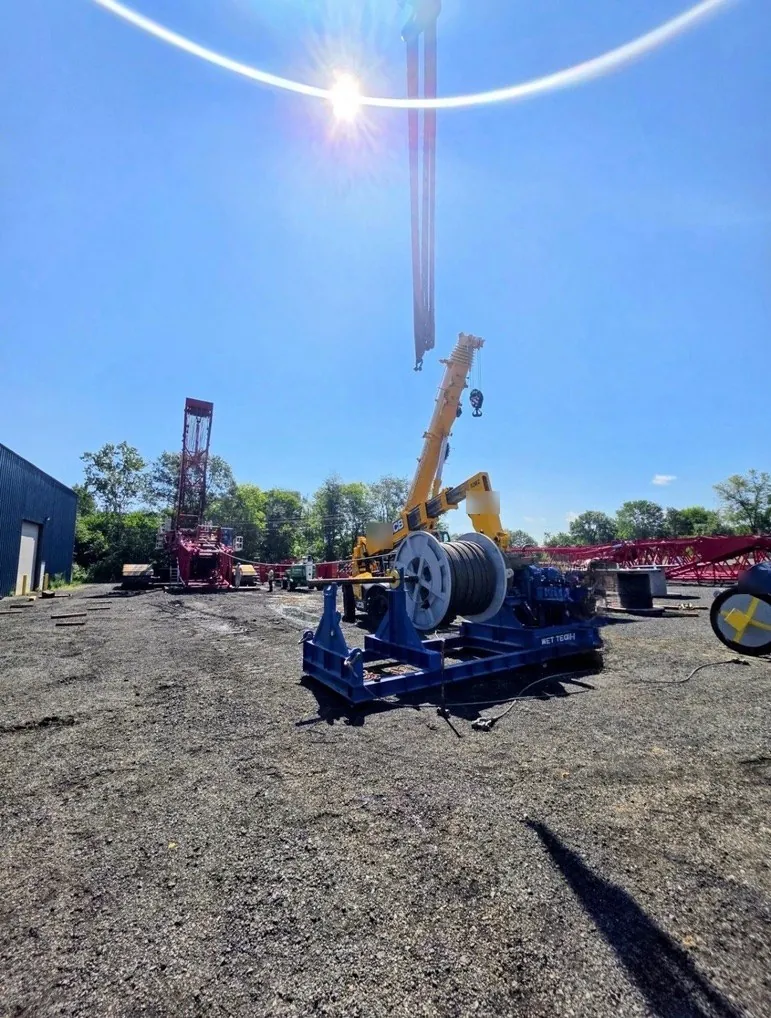

RS-001 Spooling Unit Photos
Wet Tech spooling units on the job. Click a photo to enlarge it.
See all spooling unit rentals or our wire rope spooling services.
